since 2004
Speaker Parts
manufacturers In China
- Factory direct pricing from the source factory.
- Offers over 200 standard products
- Free samples, shipped directly from warehouse (universal models)
- Customizable products, logo printing available.
XingHe has over 20 years of experience in the speaker parts industry and is equipped with advanced high-speed punching equipment.
XingHe possesses several stamping machines for speaker frame, T-yoke, top plate, drilling machine, lathe, and other production equipment.
From initial communication to order confirmation, from product manufacturing and processing to after-sales service, we will arrange personnel to handle everything for you.
Procduct

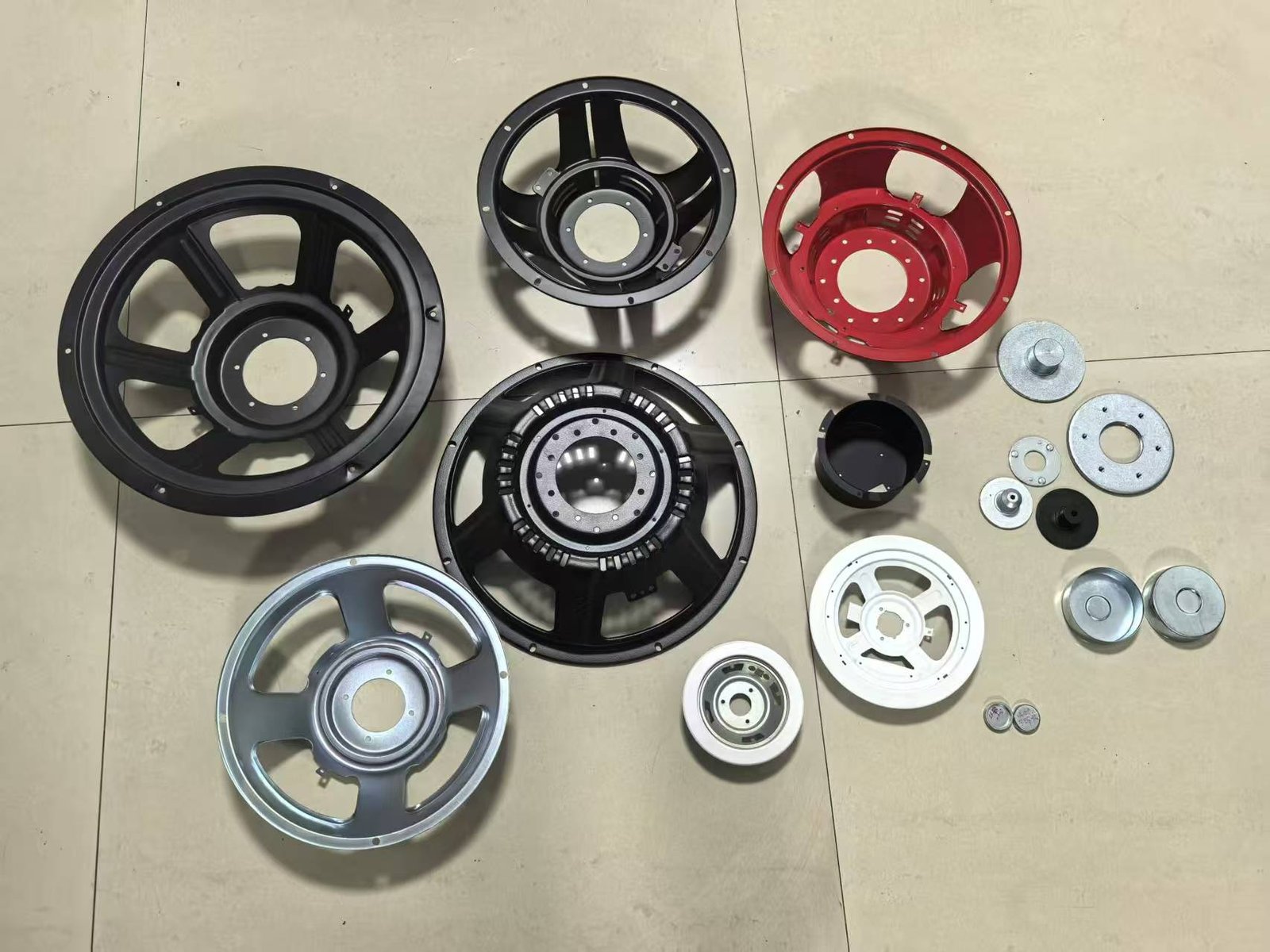

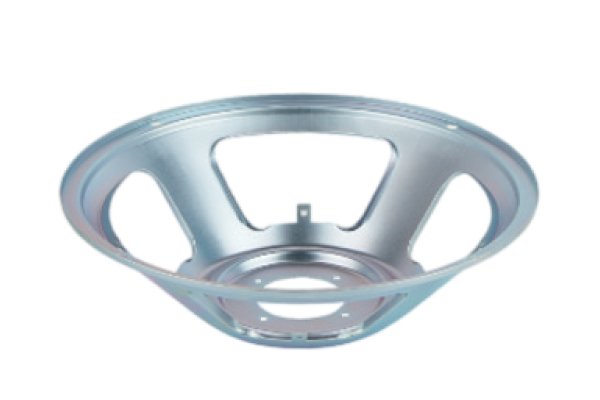

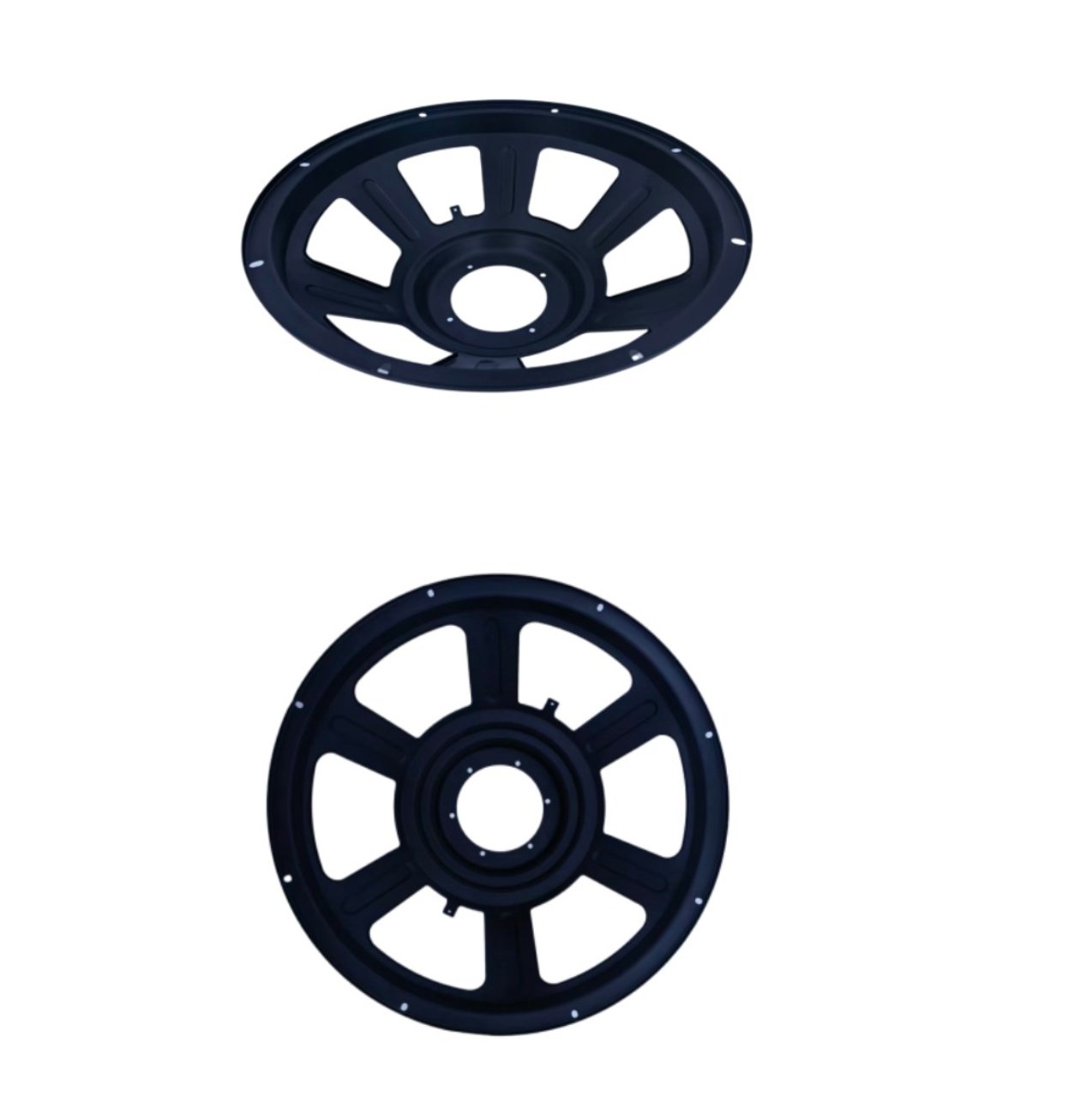

Our products—speaker frames, T-yokes, washers, and other accessories—meet strict quality standards, and we also provide production based on customer drawings and customization needs.

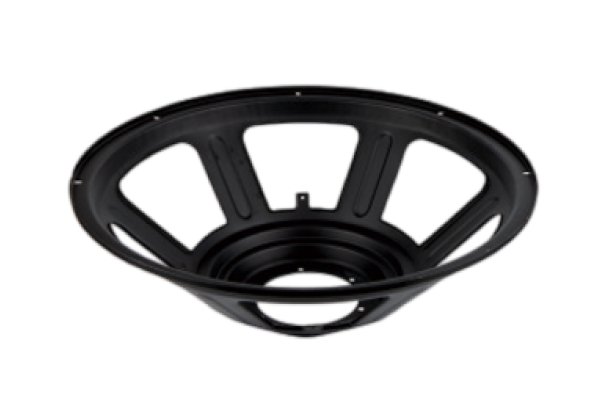

Its main application is in stage loudspeaker systems.
- Model：XH 460-01
- Metal material: Steel
-

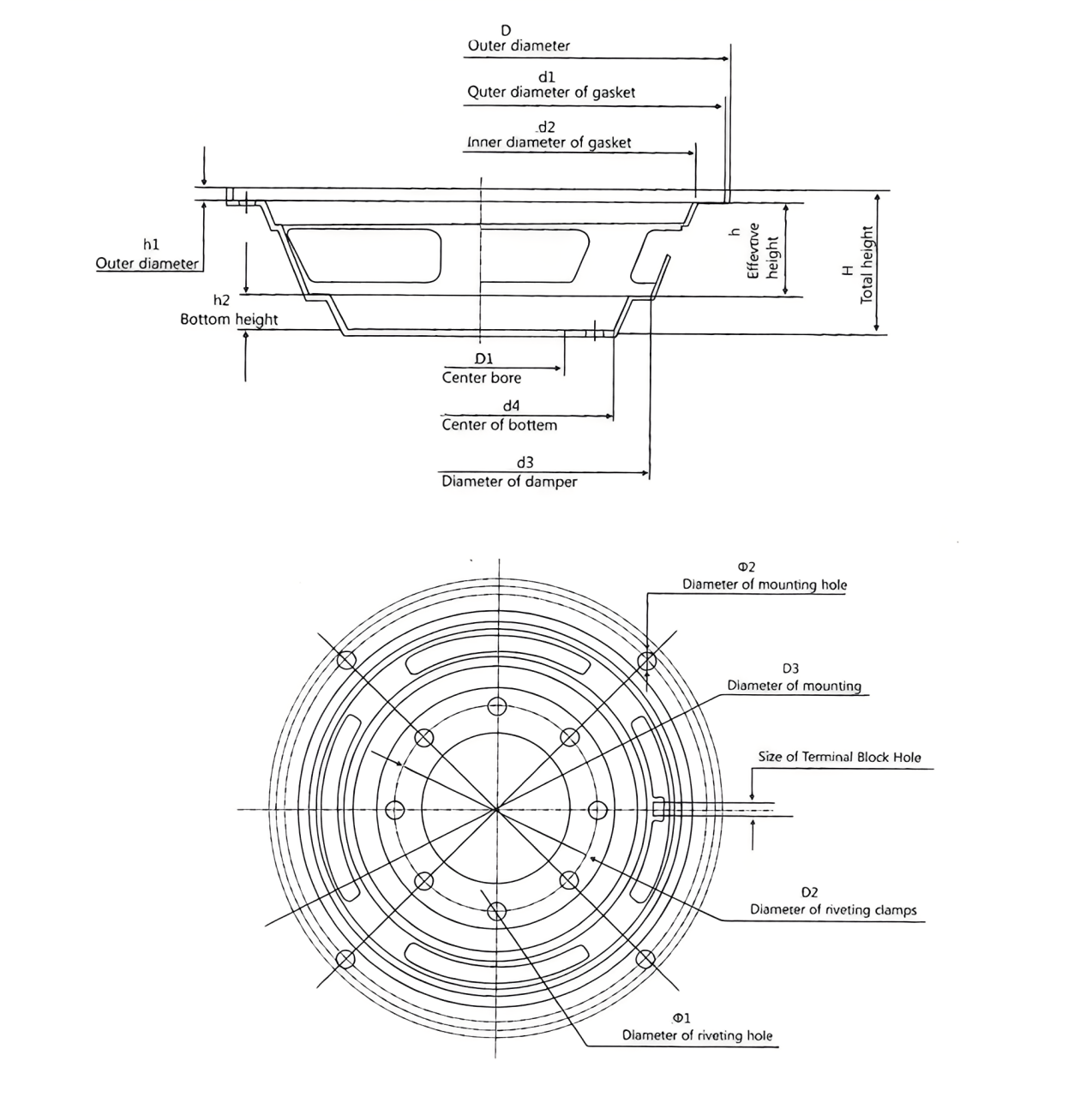

Parameter：
D:458 d1:455 d2:415 d3:232 d4:149 H:149 h:109 h1:7 h2:29
Installation diameter:443*8-6*8 - Thickness and weight：Optional
- Surface treatment：Powder coating

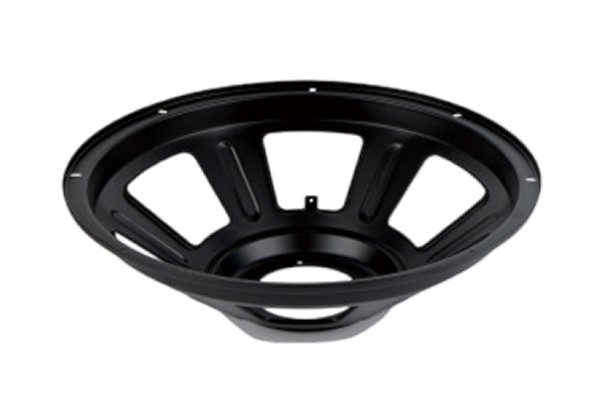

Its main application is in stage loudspeaker systems.
- Model：XH 386-36
- Metal material: Steel
-
Parameter：
D:385 d1:384 d2:345 d3:174 d4:130
H:115.5 h:92 h1:6.5 h2:15
Installation diameter:368*8-6*9 - Thickness and weight：Optional
- Surface treatment：Powder coating
For use with trolley speakers, terrace performances
- Model：XH 300-05B
- Metal material: Steel
-
Parameter：
D:308 d1:306 d2:275 d3:126 d4:106
H:93 h:80 h1:4.2 h2: /
Installation diameter:295*4-5*7.5 - Thickness and weight：Optional
- Surface treatment：Plating

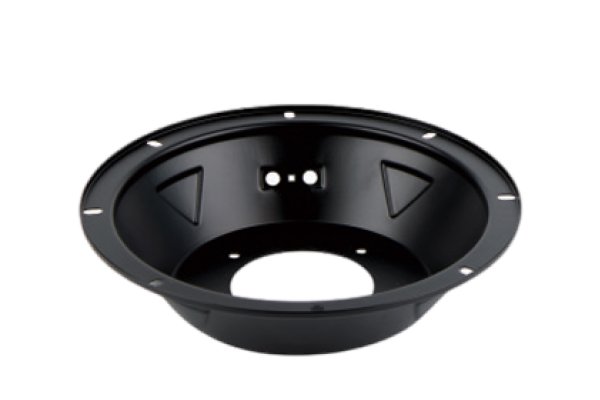

It uses a midrange speaker and has a unique sound.
- Model：XHZ 200-46
- Metal material: Steel
-
Parameter：
D:210 d1:208 d2:176 d3:/ d4:130
H:49 h:45 h1:3 h2:/
Installation diameter:196*8-5*8 - Thickness and weight：Optional
- Surface treatment：Powder coating

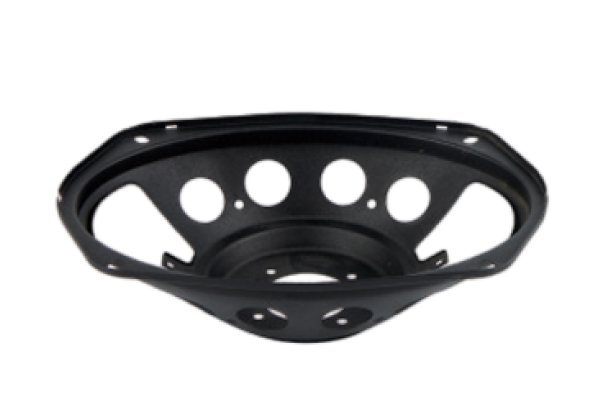

The 1623 series is commonly found in car speakers.
- Model：XHT 1623-10A
- Metal material: Steel
-
Parameter：
D:235*163.7 d1:232*160 d2:218*150 d3:112 d4:85
H:63 h:47 h1:4 h2:11
Installation diameter:168*120/4-6*9 - Thickness and weight：Optional
- Surface treatment：Powder coating
Ceiling speakers used in public places to widely broadcast information.
- Model：XH 6”Ceiling
- Metal material: Steel
-
Parameter：
D:199 d1:163 d2:140 d3:70 d4:84
H:37.5 h:28.5 h1:4 h2:4
Installation diameter: / - Thickness and weight：Optional
- Surface treatment：Powder coating

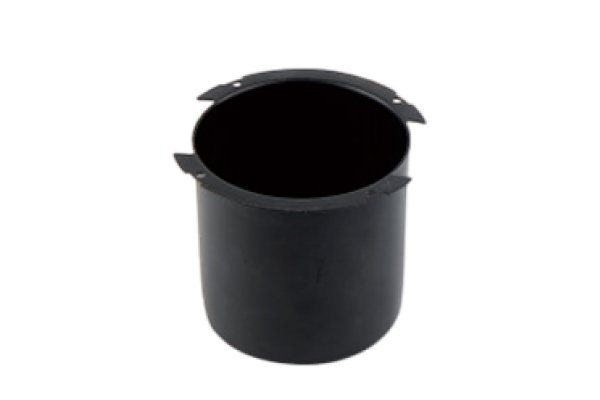

One of the accessories for ceiling speakers
- Model：XH 3"Ceiling mount back cover
- Metal material: Steel
-
Parameter：
D:88 d1:/ d2:71 d3:/ d4:/
H:/ h:74 h1:/ h2:/
Installation diameter：/ - Thickness and weight：Optional
- Surface treatment：Powder coating

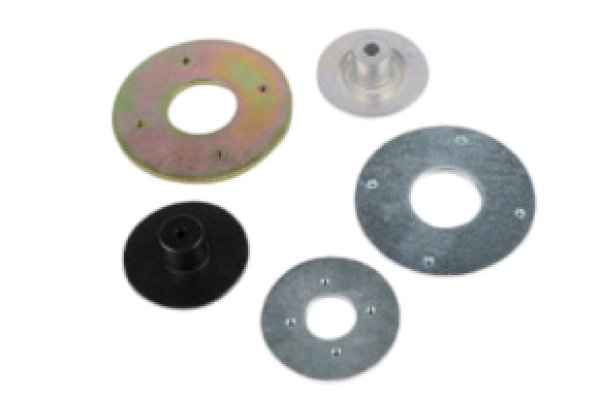

A horn's electromagnetic circuit system
- Model：XH T-yoke and washer
- Metal material: Steel
-
Parameter：
There are many depending on the specific specifications.
Fully Customizable
Customized frame, T-yoke and washer meet your project needs.
- Steel Plate: galvanized steel/cold-rolled steel
- Size: Frame 2-18 inches
- Mold: Customized according to customer requirements
- Surface Treatment: Wrinkled/Glossy/Matte/Frosted, etc.
- Thickness: 0.6-1.2mm (Customized according to customer requirements)
- Color: Custom powder coating colors available
- Custom logos are applied to the surface of the ribs.
advantages
Selection of steel
The steel used has a certificate of conformity and has been inspected. The produced frames can pass tensile tests, and the thickness and weight of the frames remain consistent and excellent, accurate to ±0.05mm.

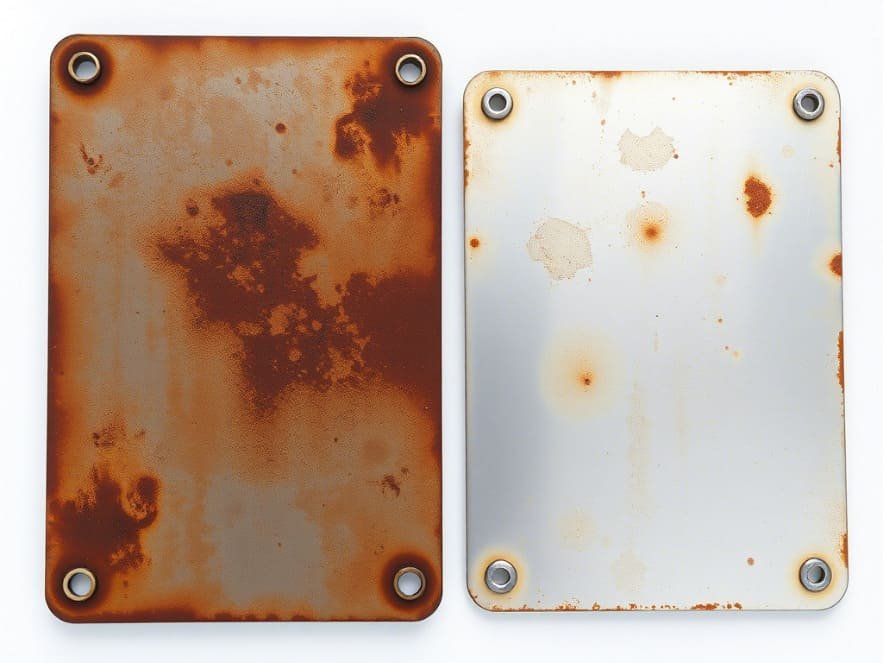

Salt spray test
T-yoke products can be customized according to customer needs and salt spray test duration, with typical durations including 28 hours, 72 hours, and 96 hours.

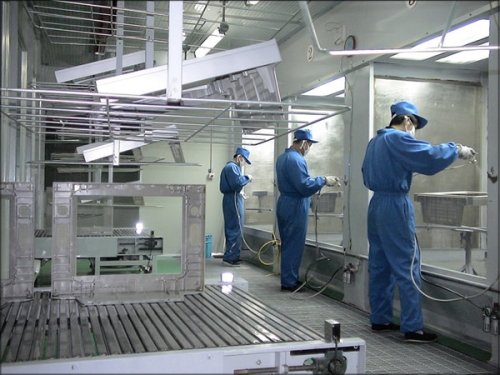

Surface treatment processes such as powder coating and electroplating
Customizable powder coating colors for the frame, surface finishes including gloss, matte, and semi-gloss, textures such as wrinkle molding, and more—a diverse range of customization options are available. T-yoke and washer electroplating further enhance the product's visual appeal and improve the speaker's magnetic circuit system.

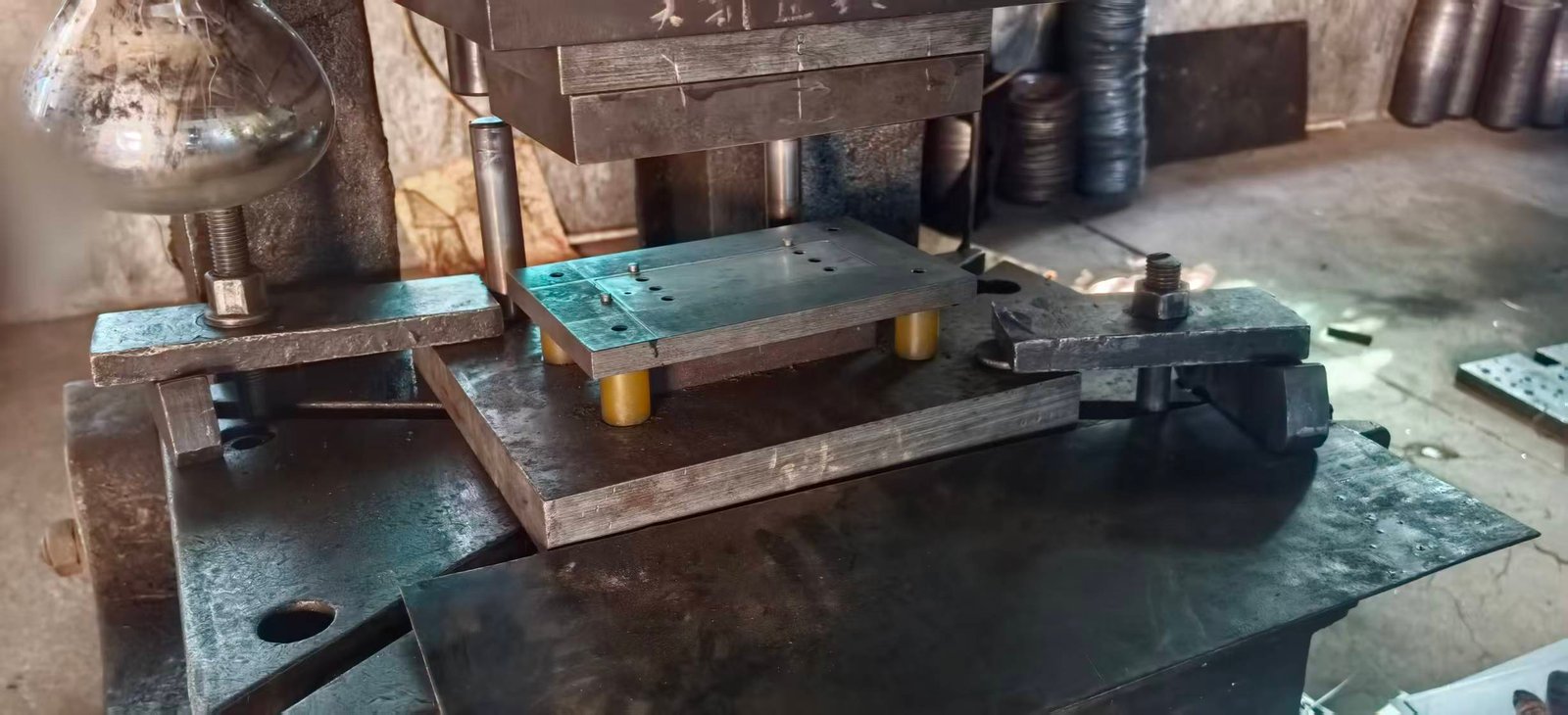

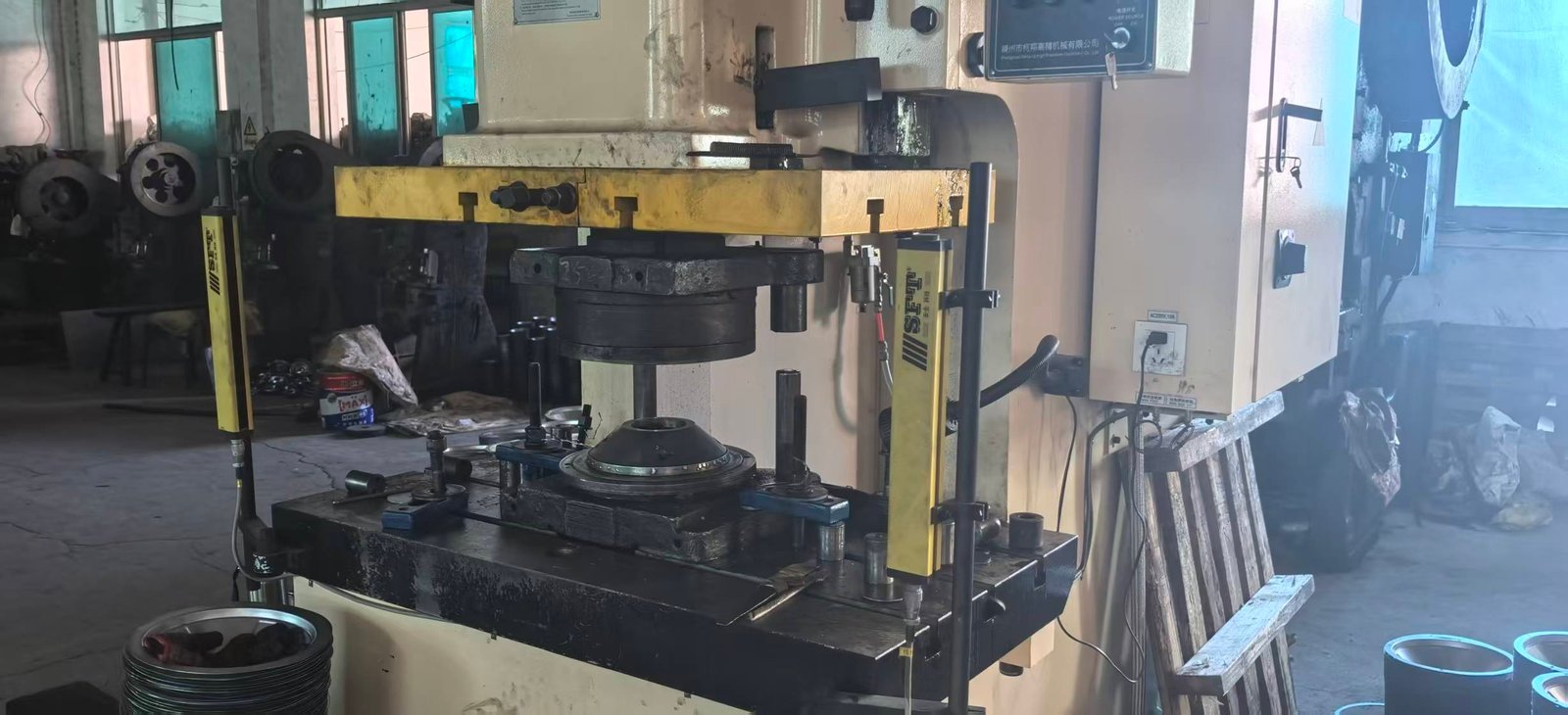

stamping equipment, team, and safety

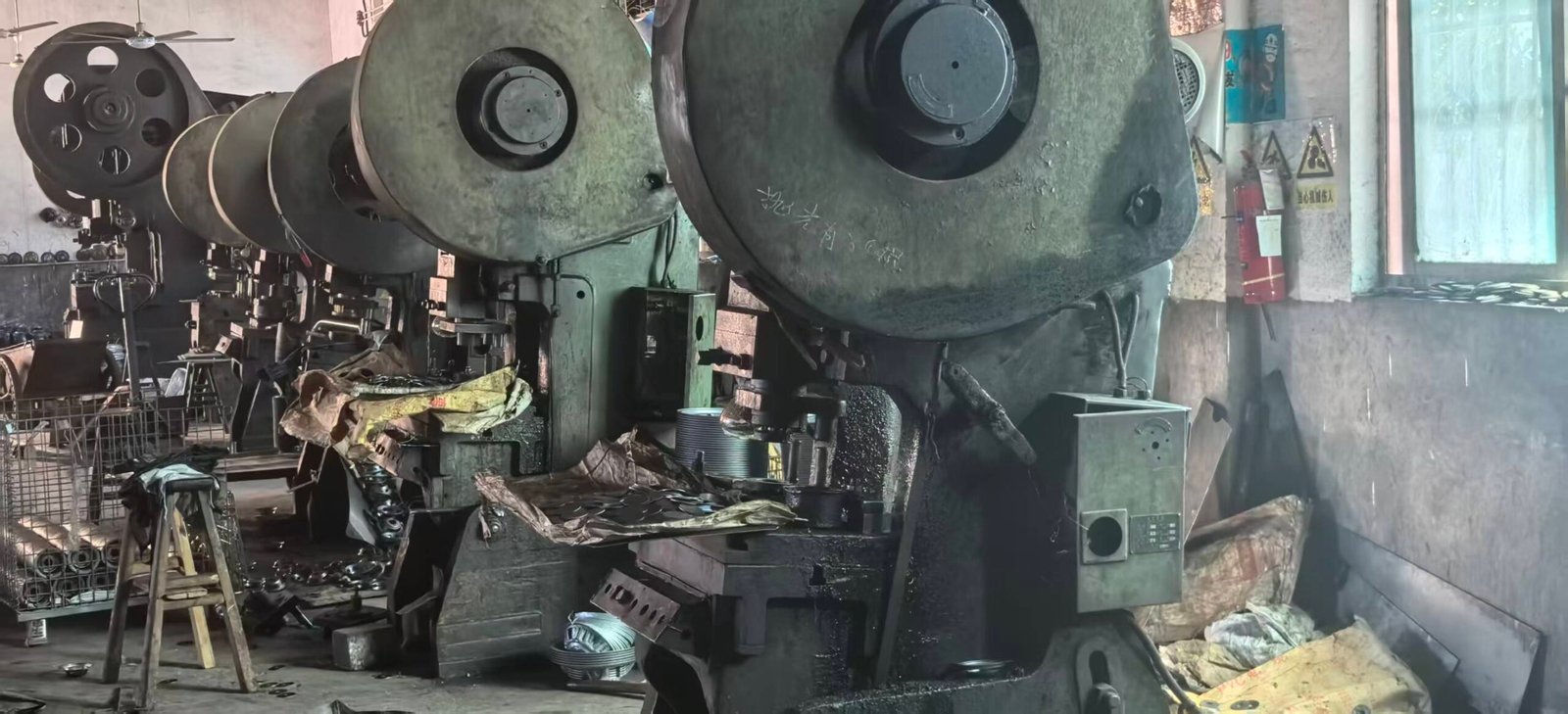

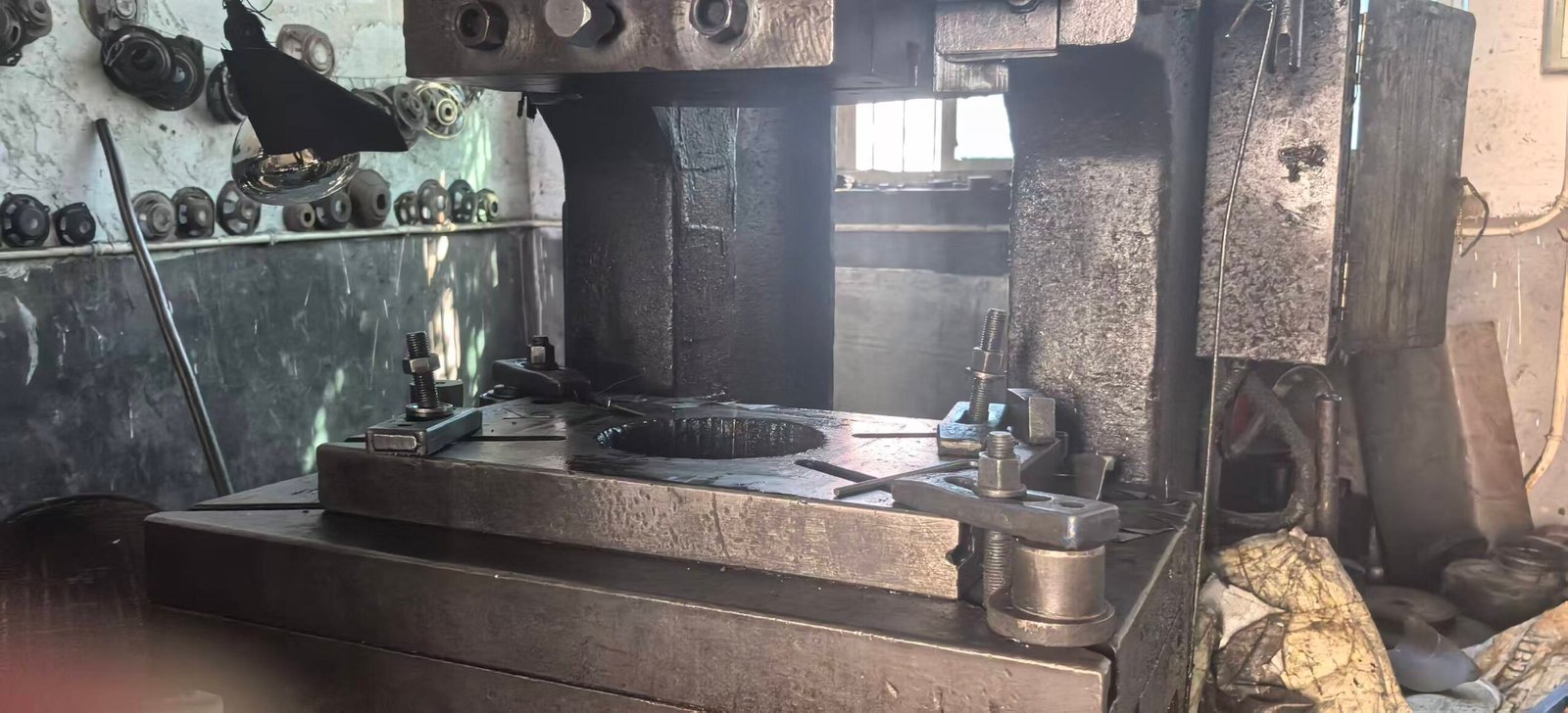

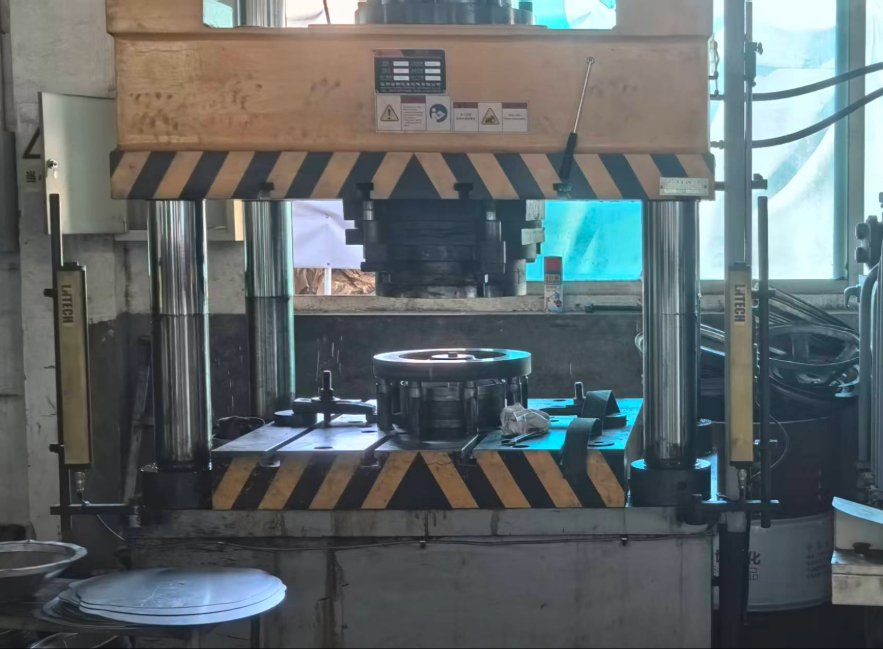

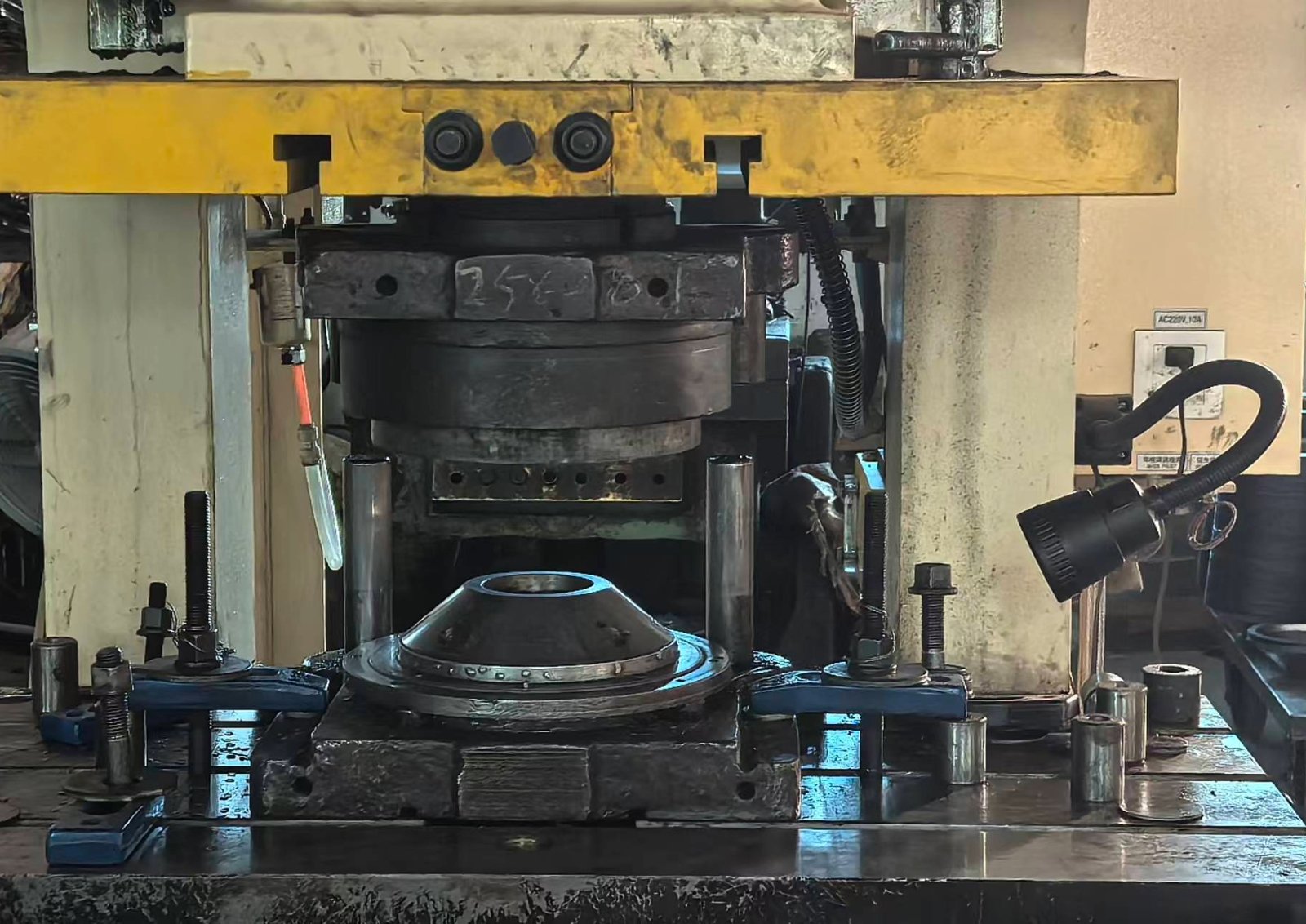

For the past 20 years, we have been continuously developing new products every year. We have dozens of stamping presses, including pneumatic punch press, used to produce frames of various sizes and models. Our production staff, with approximately ten years of experience, operate efficiently under a mature and safe production model.
Packaging services
The frame in the cardboard boxes are tightly wrapped with thick newspaper and appropriately sized foam paper to minimize scratches between the frame inside the box and to keep product packaging sealed.
Flexible and fast delivery time
Flexible delivery schedules and rapid response; quick matching of urgent or adjusted delivery times; efficient and prompt fulfillment; direct warehouse shipping for small items; and flexible batch shipments for large quantities of goods.
Our services
From car speakers, public address speakers, and ceiling speakers to audio speakers, we provide accessory services for every project, maintaining quality and efficiency.

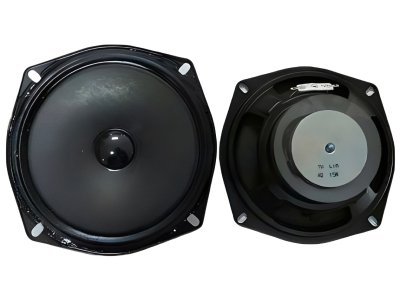

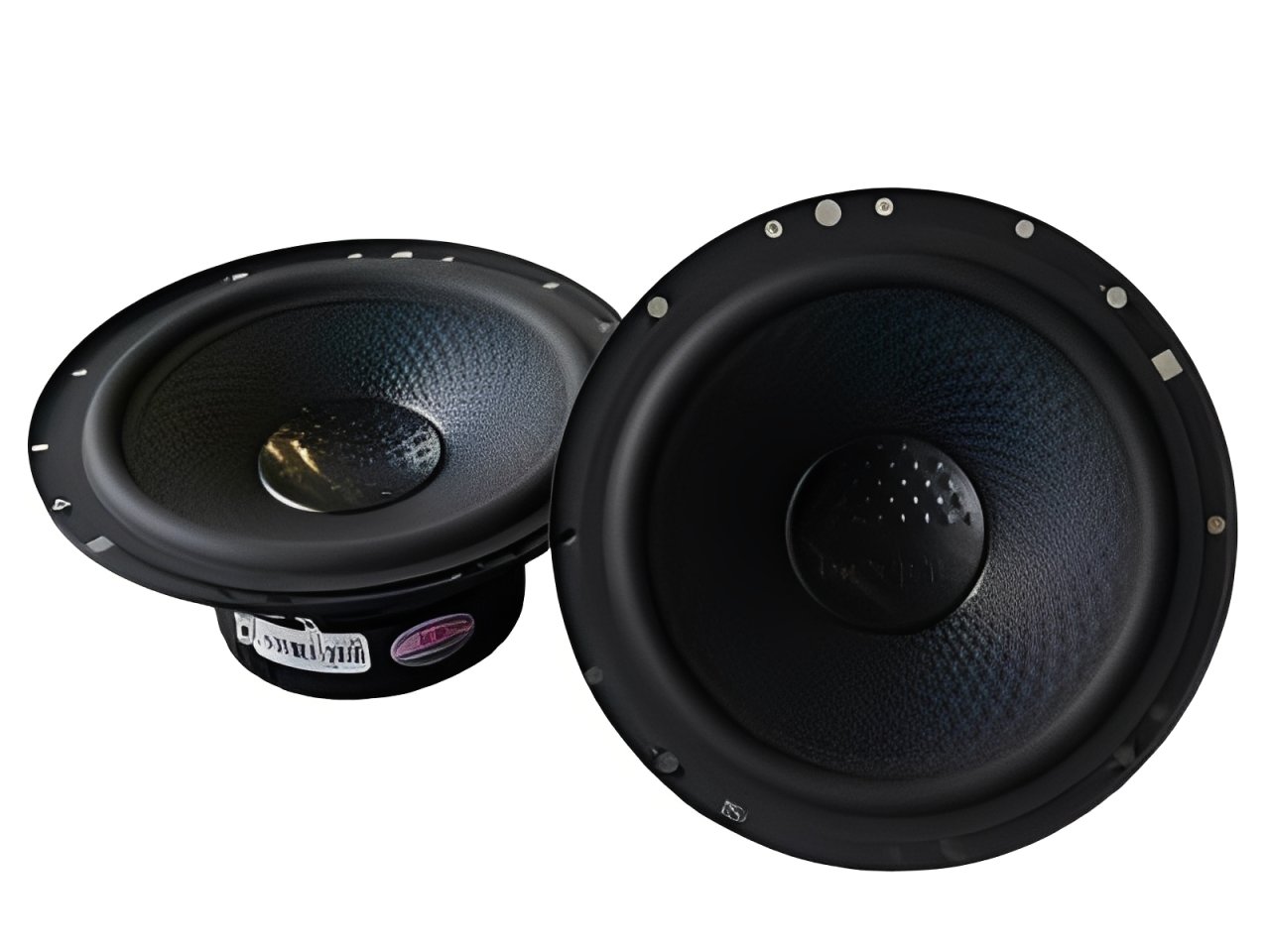

Car Speaker
A car speaker is a vehicle's acoustic warning device used for driving safety alerts and road condition communication.

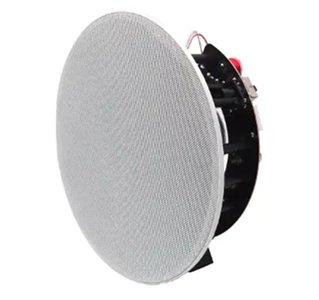

Ceiling Speaker
Embedded speakers offer clear sound quality and are suitable for indoor use, such as government agencies, hospitals, hotel lobbies, and high-speed rail stations, as well as outdoor sound amplification/background music scenarios.
Speaker in a trolley speaker
A full-range speaker in a rolling case, portable and portable, with ample volume, suitable for outdoor performances, presentations, and other scenarios.

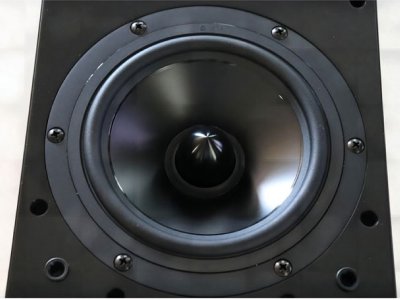

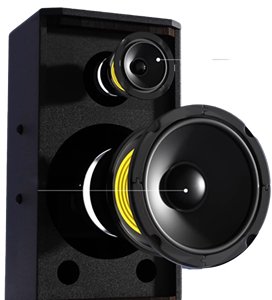

Home audio-visual hifi speakers
High-fidelity home audio-visual speakers.Clear sound quality, three-dimensional sound, powerful bass, adaptable soundstage, and wide sound coverage.
Stage sound speakers
With strong penetration across the mid, low, and high frequencies, it is suitable for bars such as KTVs and stage performances.

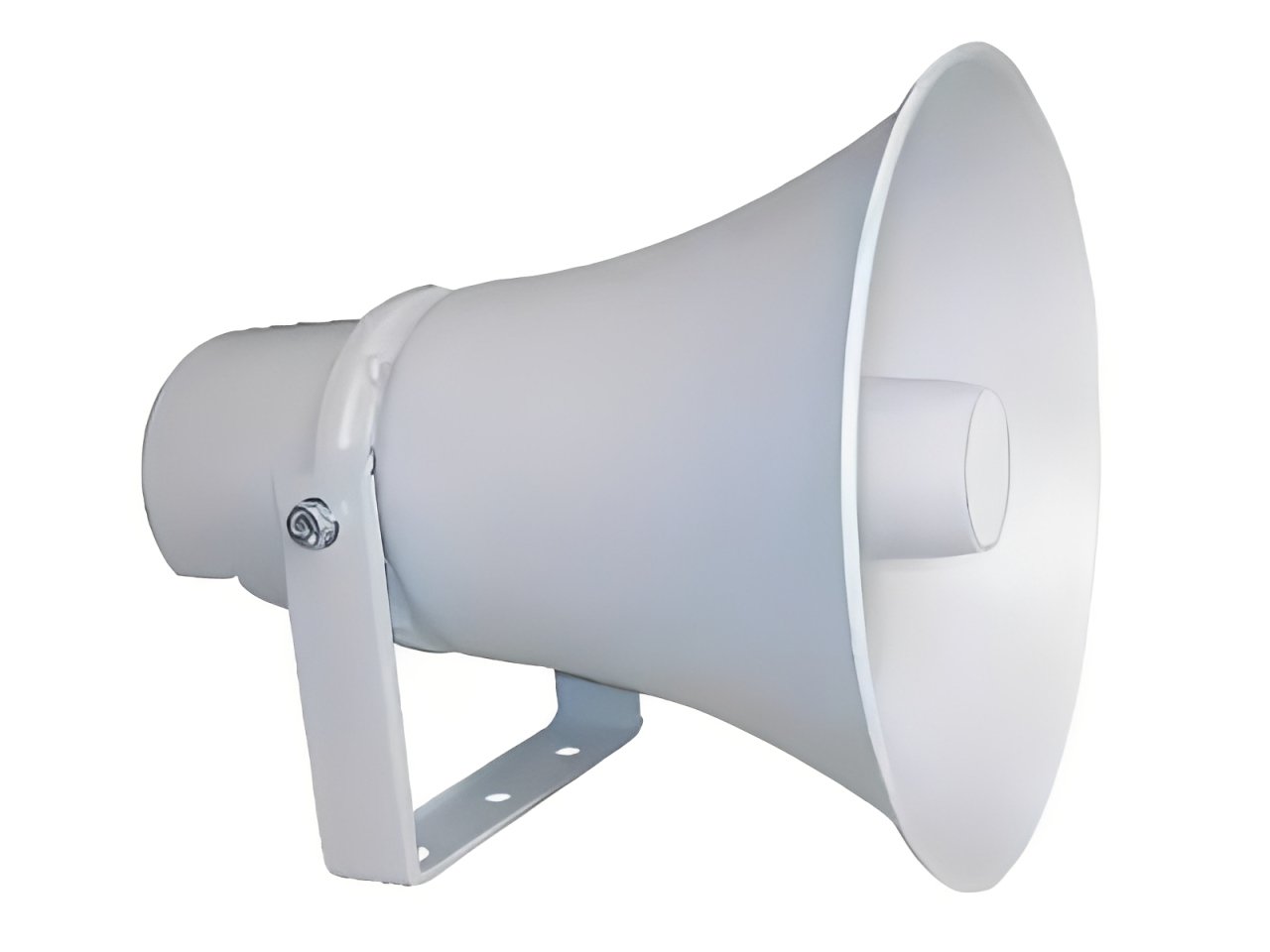

Public address loudspeaker
It has wide coverage and stable audio transmission, making it suitable for public scenarios such as notifications and emergencies.

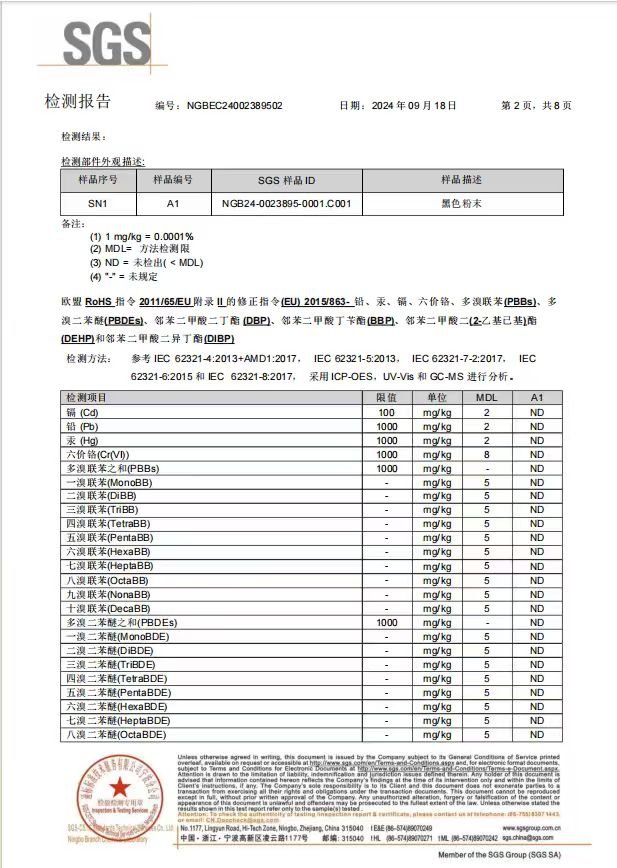

Certification
About XingHe
Xinghe Electroacoustic Co., Ltd., was established in 2004. The company’s main business includes the production, R&D, design, procurement, quality inspection, sales, and trade of electroacoustic accessories. Its factories produce various 2-18 inch frame mounts, T-yoke, washer, magnetic covers, and other hardware and electronic components.
The factory is located in Shengzhou, Zhejiang Province, a scenic city with convenient transportation, the birthplace of traditional Chinese Yue Opera. This area is also the birthplace of China’s electroacoustic component manufacturing industry.
Adhering to the principle of “survival through quality and development through brand,” our company carefully selects raw materials, refines technology, and launches new products at reasonable prices and with excellent service to meet diverse needs. We are committed to becoming an influential electroacoustic equipment manufacturer in the industry and look forward to working with you for mutual benefit.

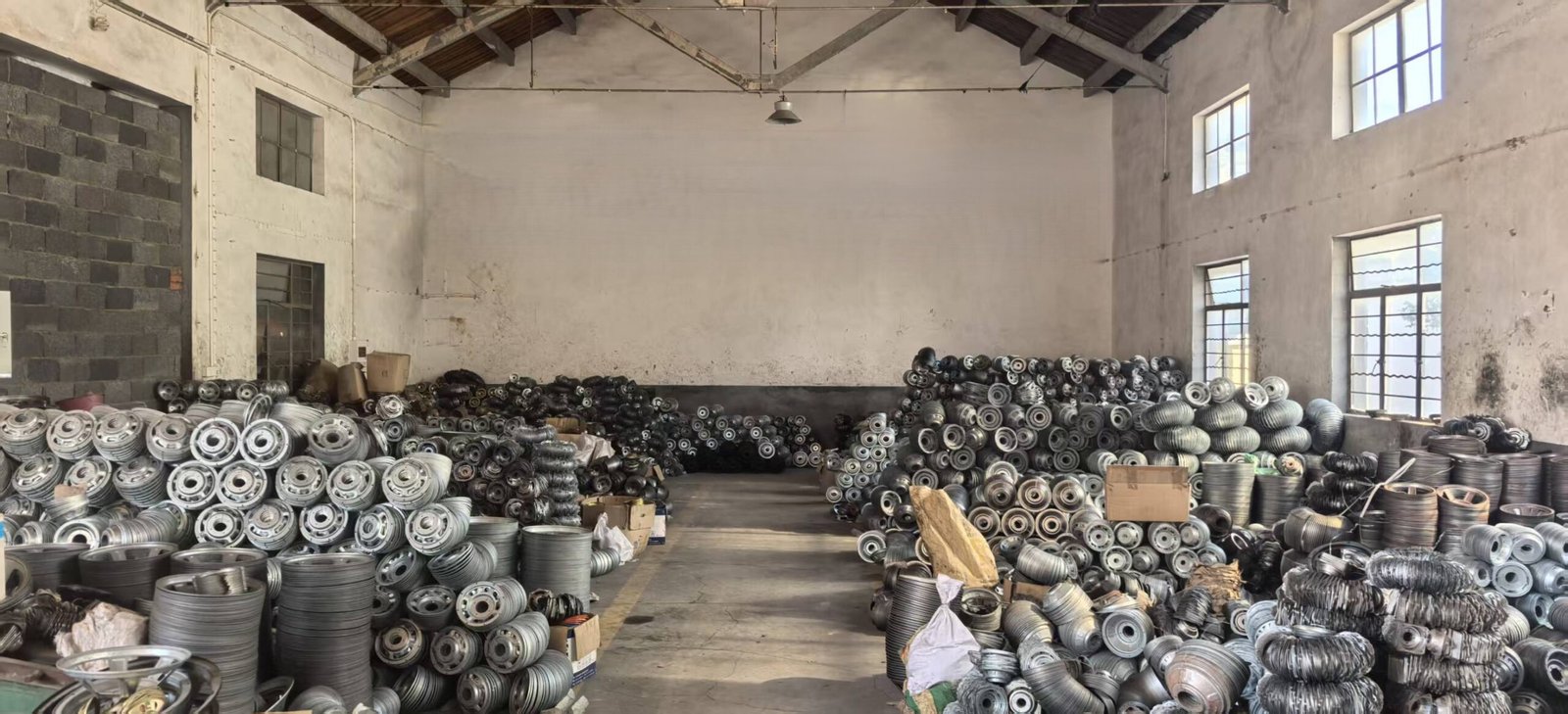

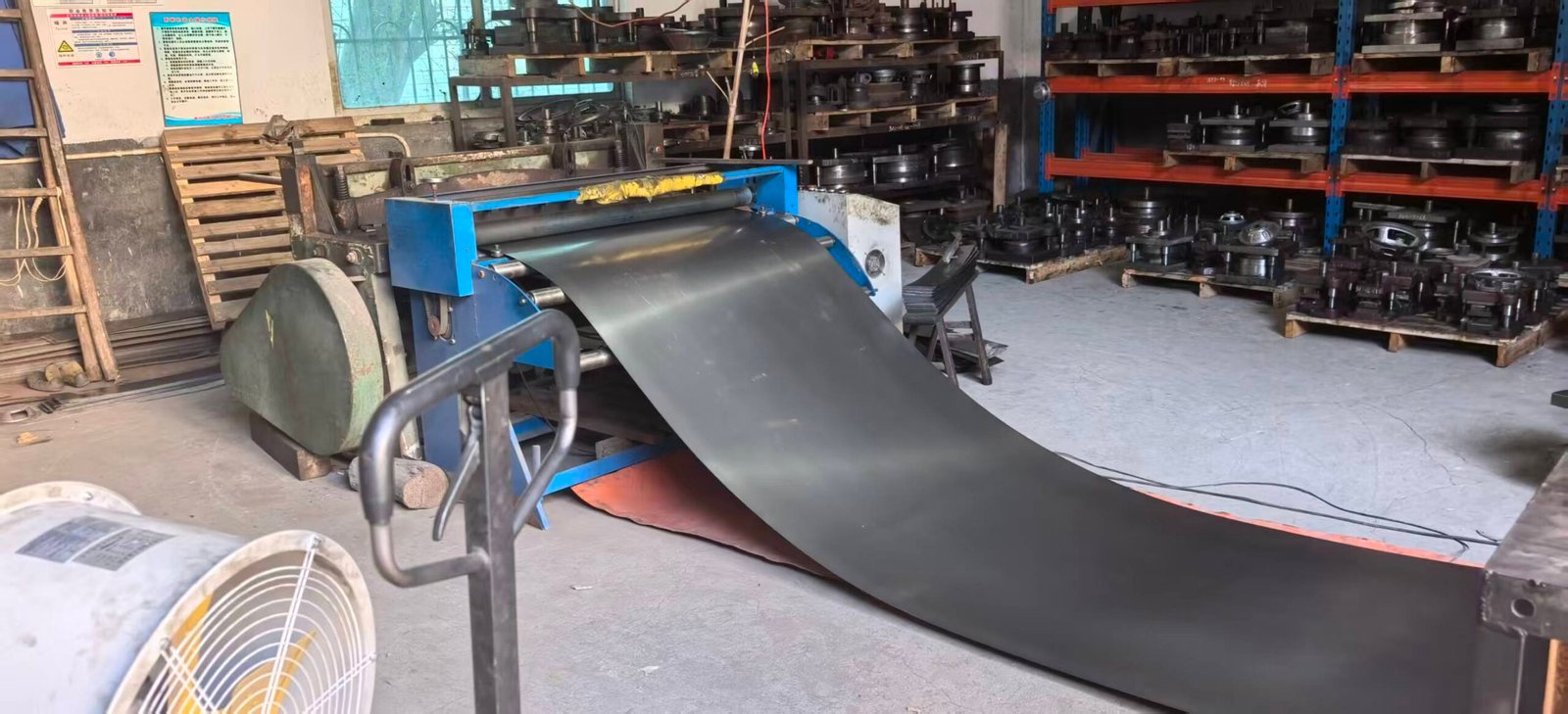

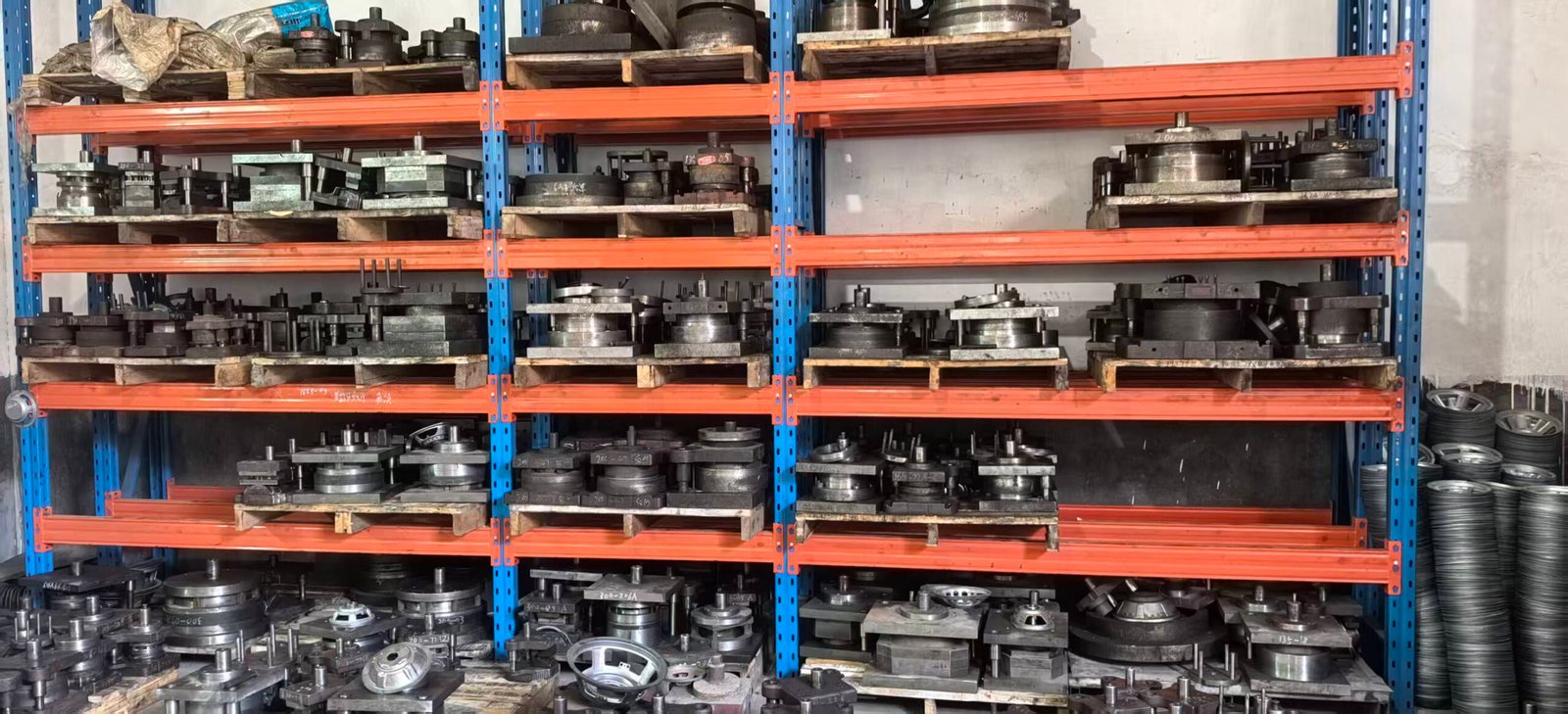

Our production workshop
We are factory direct sales, from consumers to stores to wholesalers to agents to general distributors to factory merchants, choose us to save a lot of intermediate links, to bring you the maximum profit margin!
Professional, meticulous, and reliable speaker parts experts
With over 20 years of industry experience, I am able to quickly understand your needs and develop the most suitable procurement plan for you.
Our Exhibition Journey
We exhibited at the Guangzhou Professional Audio Exhibition in May 2024, participated in the 2024 Canton Fair Autumn Exhibition, and exhibited at the Guangzhou Professional Audio Exhibition in May 2025.
Project Engineering
We have rich project experience and can tailor a solution for your project based on your needs, providing excellent quality at a low cost.
Common Questions
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about our products, you can send an inquiry to contact us.
When selecting steel as a raw material for production, we typically use cold-rolled steel sheets and galvanized steel sheets.

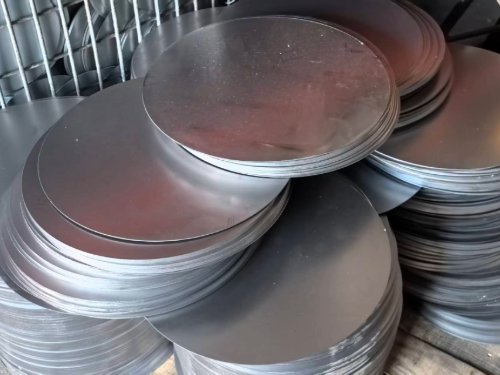

When producing round farmes, we generally use pre-cut round pieces of steel with standardized dimensions. However, when producing non-round frames, we cut the steel ourselves, for example, into rectangular pieces to manufacture the frames.
Absolutely! You can choose the size, type of metal for the outer plates,and even the color, texture, and add your logo. We make sure everything fits just right for your project.T-yoke and washer are also available.

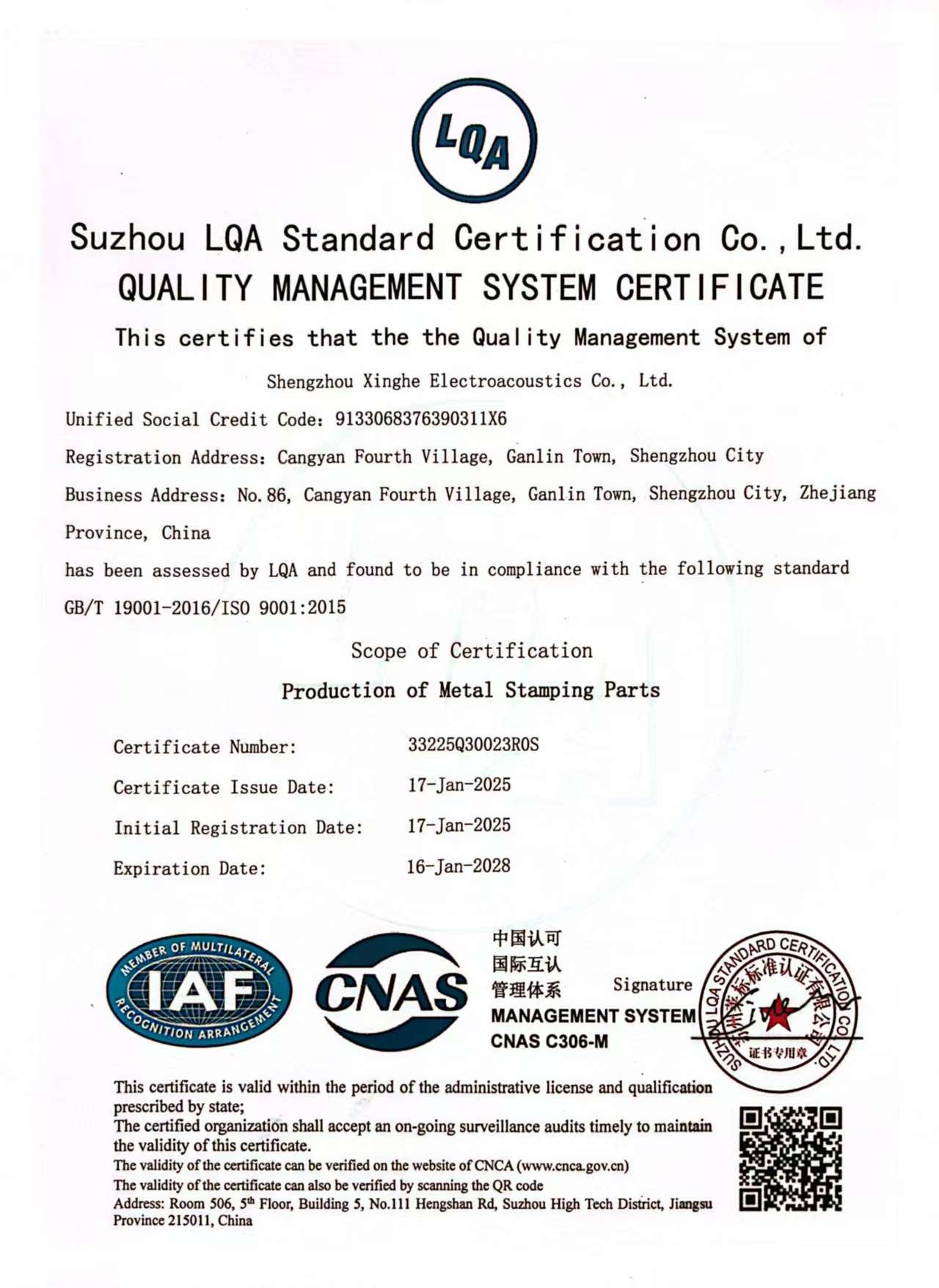

We hold ISO 9001 management system certification, and all our speaker component stamping, steel, and powder coatings have testing and certification certificates. We cooperate with hundreds of manufacturers.
If a farme needs to be customized, a mold needs to be made. The mold making time is usually about one month, depending on the structure and complexity of the frame being developed. Only after the mold is completed will samples be sent and confirmed. There is also the time for express delivery in between, and then mass production begins.
You can report the problem to us via text and pictures. After verifying the situation, we will send you a replacement within 3 days.

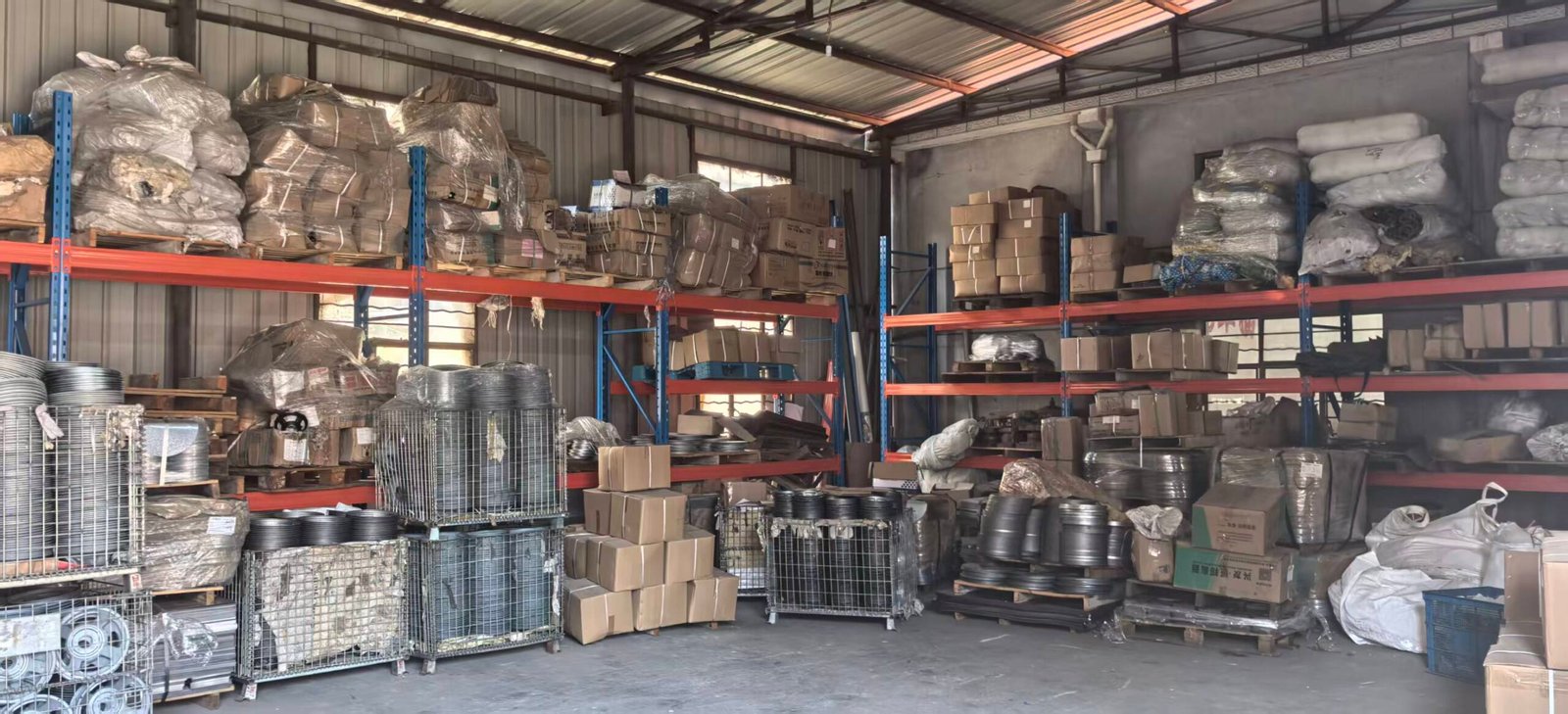

We maintain our own inventory, giving us more flexibility in shipping than others.We can flexibly ship in batches according to your needs, ensuring your sales opportunities are not delayed. In the event of global events or policy changes, we can also suspend shipments until the situation improves.
Want to find the source factory to save money in the middle?
We own the source factory and can customize frame, T-yoke, and washer to your needs, including dimensions, metal type, and even colors and powder coating textures. With years of production experience, choosing us will give you maximum benefit.
XINGHE ELECTROACOUSTIC
Get Samples Now !
Welcome to view our samples of frame and other products. Witness the quality of our products firsthand, and let’s officially begin our cooperation.Contact us for more comprehensive electronic product catalogs!
